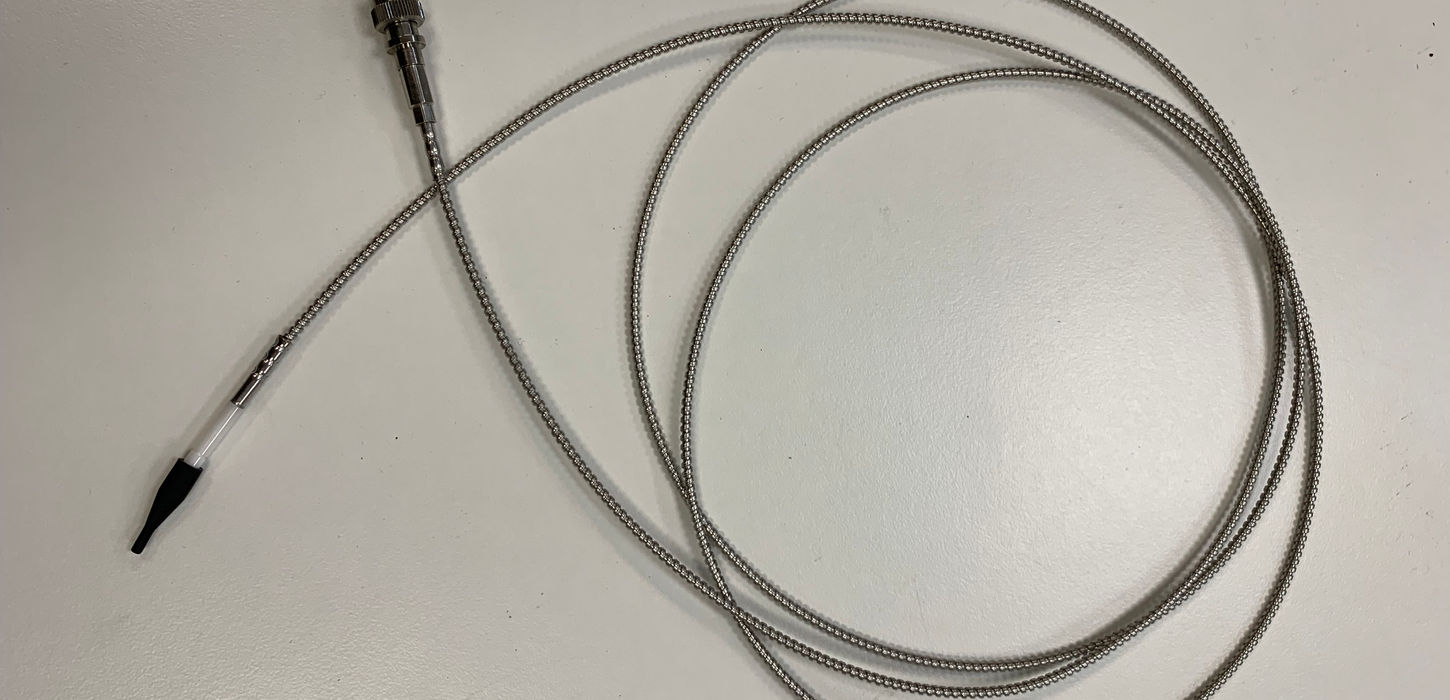

Alpheus THT
This sensor is designed for use in harsh environments, offering both high sensitivity and high frequency response. It is fully calibrated for sensitivity and bandwidth. Its compact size makes it ideal for studying high-frequency acoustic waves in pipelines.
**Typical applications include:**
- Turbine analysis (compressor stall analysis)
- Non-destructive testing
- High-voltage measurements (overhead lines, electrical transformers)
- Arc or high-frequency welding processes
- Measurements in ATEX environments
Main Features
Transducer type: Silicon nitride membrane
Operating mode: Differential (front‑vented)
Frequency band: 100 Hz to 400 kHz
Max dynamic pressure: 3 Bar (≈ 203 dB SPL)
Sensitivity: 1.5 µV/Pa (50 mV/Bar)
Operating temperature: –40 °C to 800 °C (short‑term peak at 850 °C)
Self‑noise: 110 dB SPL (~ 0.06 mBar)
Sensor head: 3.2 mm × 10 mm (other sizes available)
Sensor weight: 0.5 g
Fiber cable length: 2 m (standard)
EMI/RFI immunity: Full
Compatible media: All gases and water
Factory‑calibrated for sensitivity and bandwidth
Typical use cases
Turbine analysis (e.g., compressor stall detection)
Non‑destructive testing
High‑voltage measurements (e.g., overhead lines, transformers)
Arc or high‑frequency welding
Applications in ATEX environments (explosive zones)
High‑frequency acoustic studies in pipes or ducts
